Die Design

Vision develops tools projects to trim, pierce and form sheet metals. Also, we have a large experience projecting Progressive Tools, Control Devices and Welding Devices.

In addition, we perform Simulations, Sheet Usage Calculations (open blank), Sheet Elastic Return Corrections (Springback) and the Development of Die Operation Line-Up for tool construction.

Ferramenta 1.png

We use software like Dassault Catia V5,Siemens NX, GOM Inspect, CostOptimizer (Forming Suite) and Autoform to ensure the delivery of high quality projects to our customers.

Automotive production press shop scene.jpg

Need help with your Tooling Projects?
Talk to Vision!

Ferramenta 3.png
Ferramenta 7.PNG
Ferramenta 2.png
Ferramenta 1.png

Projects  for
Large Tools

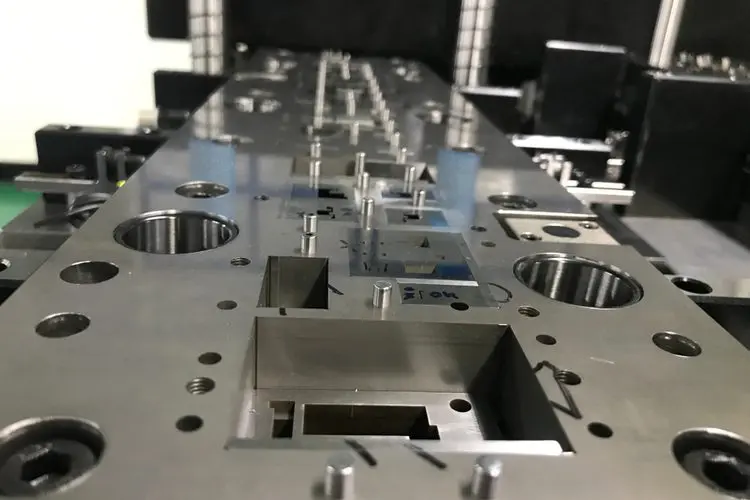

Projects for Progressive Tools, Devices
Welding and  Assembly


Side dish
of Tool Construction


Simulations,  Blank Opening and Springback Studies
